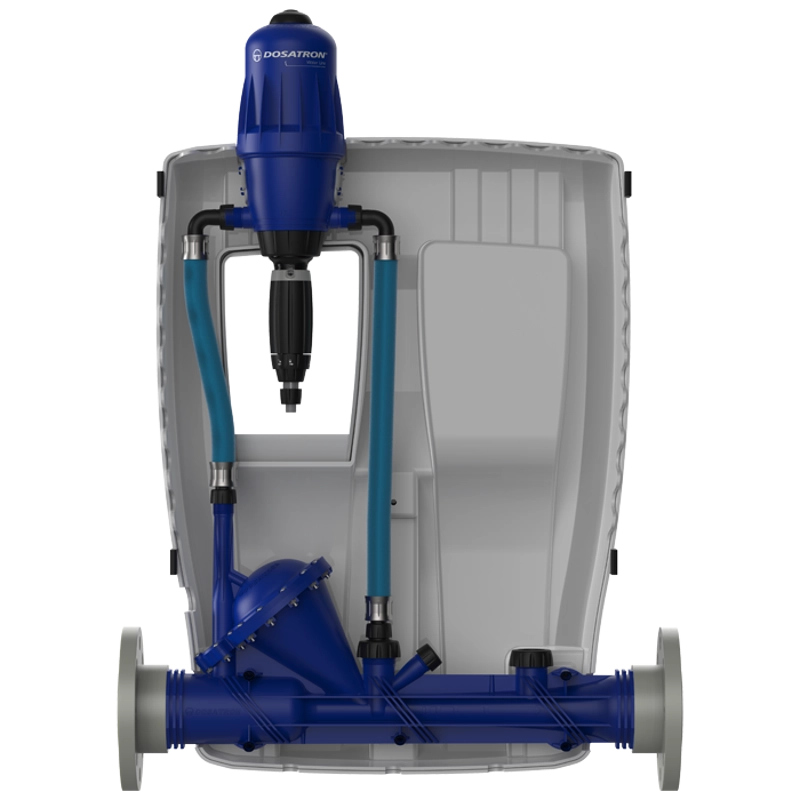

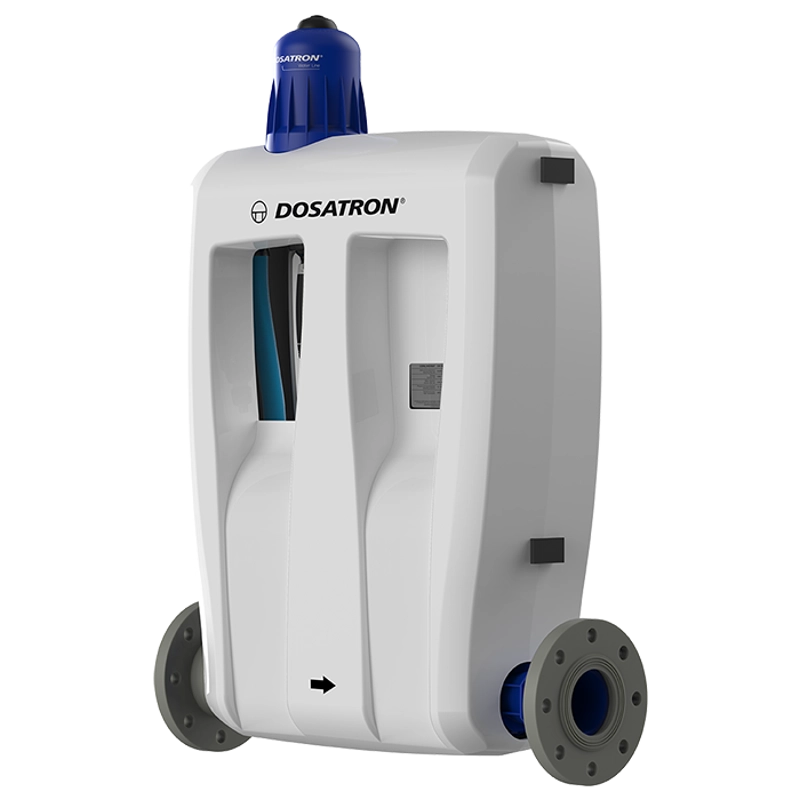

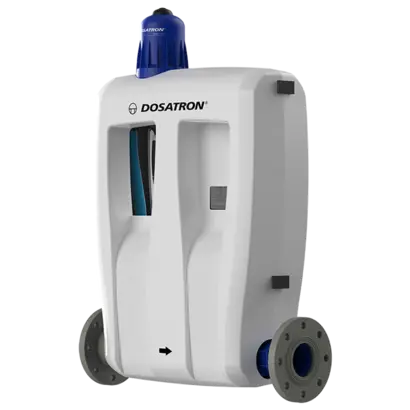

D30WL Dosing pump 0.02 to 0.02 %

Product description

The high-flow dosing solution

The D30WL range of dosing pumps is specifically designed for high-flow drinking water, treatment and disinfection applications, and for networks up to 30 m3/h.

• Materials and options adapted to water treatment additives
• Operates without electricity
• Allows fully proportional dosing, regardless of flow and pressure variations
• Maintenance without tools



• Injection range 0,02 - 0,2 % [1:30000 - 1:3000]
• Water flow range 8000 - 30 000 l/h
• Operating water pressure 0,5 - 8 bar
• Concentrated additive injection 0,24 - 9 l/h
• Stroke volume ~ 0,53 l
• Connections Flange 3”, Thread NPT
